Set Custom Origin in Electrode Assembly
SMARTElectrode allows definition of a custom placement csys for new electrode assemblies.
What is the benefit of this enhancement?
Defined custom assembly origin is used for computation of csys and datum points in group “SE_AUTO_CSYS” on reference model
outline. This enhancement allows to correct orientation of reference models in assembly.
Usage

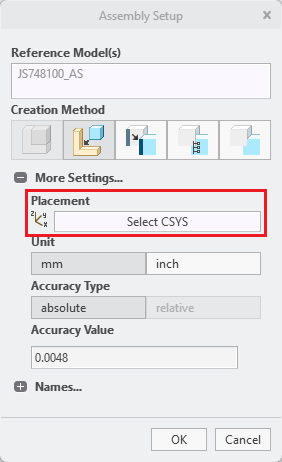

- Click to open dialog for assembly definition
- Expand .
- Click Placement to start selection of a csys.
- Confirm assembly creation after selection.
Additional Information
|
Tips:
|
None.
|
|
Limitations:
|
Selection only for new assemblies allowed.
|
|
