Register and start SMARTElectrode in Creo Parametric
  • Start Creo Parametric
  • Open Auxiliary Applications
  • Activate Register...
  • Browse to installation directory and select <install dir>\bin\protk.dat

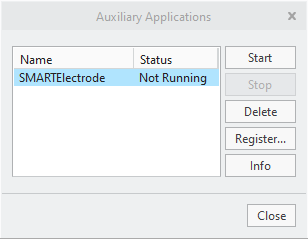

  • Select SMARTElectrode and start application Auxiliary Applications dialog
  • A setup wizard guides you through the creation of a customer configuration on 1st start of a new main version.
Automatically start SMARTElectrode in Creo Parametric
  • A prepared config.pro can be found in <install dir>\bin\config.pro.
  • The file includes recommended values for Creo options and the necessary option to register SMARTElectrode:protkdat <install dir>\bin\protk.dat
  • Add the line to your own config.pro.
Delay start of SMARTElectrode in Creo Parametric
  • Delay start of SMARTElectrode if there are more users than available licenses in your company. SMARTElectrode will be listed in Auxiliary Applications but not started automatically.
  • Open protk.dat used to register SMARTElectrode in Creo Parametric. By default this file is located in your installation directory: <install dir>\bin\protk.dat
  • Change option to delay_start true
  • Save and close protk.dat
